Stair Tread Depth

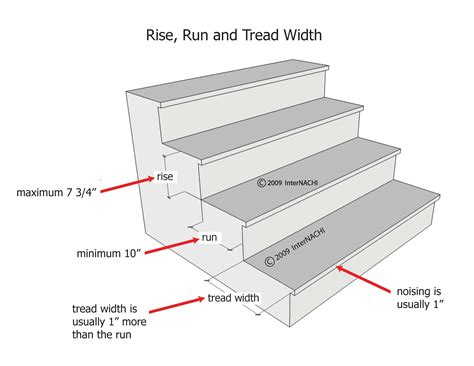

The concept of stair tread depth is a crucial aspect of stair design and construction, as it directly impacts the safety and usability of stairs. Stair tread depth refers to the horizontal distance from the leading edge of one tread to the leading edge of the next tread. This dimension is critical because it influences the user's ability to comfortably and safely ascend or descend the stairs. According to the International Residential Code (IRC) and the International Building Code (IBC), the minimum stair tread depth is 10 inches (254 mm), but local building codes may vary, and some jurisdictions may require deeper treads for specific types of buildings or occupancies.

Historically, stair design has evolved significantly, with early staircases often featuring narrow treads and steep risers. However, as the importance of safety and accessibility became more apparent, building codes and standards began to emphasize the need for more generous tread depths. Today, designers and builders must balance aesthetic considerations with functional requirements, ensuring that stairs are both visually appealing and safe for users. The Occupational Safety and Health Administration (OSHA) also provides guidelines for stair tread depth, particularly in workplace settings, highlighting the importance of this dimension in preventing falls and ensuring a safe working environment.

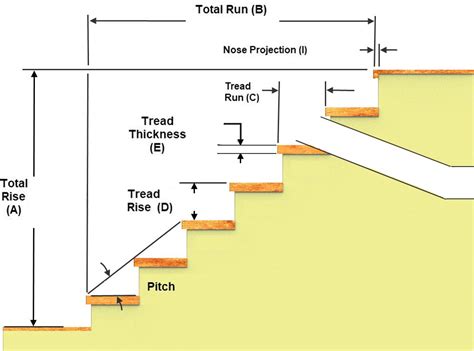

Calculating Stair Tread Depth

Calculating the ideal stair tread depth involves considering several factors, including the riser height, the user’s comfort, and the building’s intended use. A common rule of thumb is to aim for a total rise and run (the sum of the riser height and tread depth) of 17 to 18 inches (432 to 457 mm), although this can vary depending on the specific application. For example, in residential settings, a more relaxed stair pitch might be acceptable, while in commercial or industrial environments, a steeper pitch might be necessary due to space constraints. It’s also important to consider the nosing, the part of the tread that protrudes over the riser below it, as this can affect the perceived depth of the tread.

Factors Influencing Stair Tread Depth

Several factors can influence the selection of an appropriate stair tread depth, including the type of building, the expected user population, and local building codes. For instance, in buildings designed for elderly or disabled individuals, deeper treads and shallower risers may be necessary to facilitate easy and safe navigation. In contrast, in areas where space is limited, such as in compact residential units or historic buildings, narrower treads might be tolerated, provided they meet the minimum code requirements. The material used for the stairs, whether wood, concrete, or metal, can also impact the perceived safety and comfort of the stair, with some materials offering better traction or visual cues than others.

Technical Specifications and Considerations

From a technical standpoint, stair tread depth is just one of several critical dimensions that must be considered in stair design. The riser height, nosing projection, and stringer placement all interact with tread depth to create a safe and comfortable stair. For example, a stair with very deep treads but excessively high risers might be just as uncomfortable and hazardous as one with very shallow treads and low risers. Furthermore, the way in which treads are supported (e.g., by stringers or a solid web) can affect the structural integrity and the perceived solidity of the stair, influencing user confidence and safety.

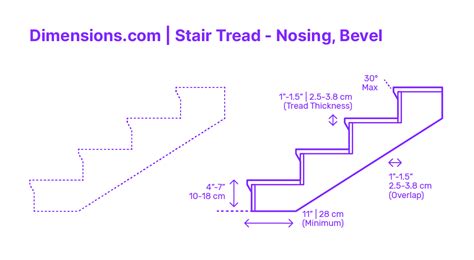

Nosing Projection and Its Impact

The nosing projection, typically ranging from 0.75 to 1.25 inches (19 to 32 mm), plays a significant role in stair safety. A properly sized nosing can provide a visual cue to the user about the tread edge, helping to prevent missteps. However, an overly large nosing can create a tripping hazard, while one that is too small may not provide sufficient visual distinction between treads. The material and finish of the nosing can also impact its effectiveness, with contrasting colors or textures enhancing visibility.

In conclusion, stair tread depth is a multifaceted consideration in stair design, influenced by a variety of factors including building codes, user needs, and aesthetic preferences. By understanding the historical context, technical specifications, and practical considerations involved in selecting an appropriate stair tread depth, designers and builders can create stairs that are not only safe and functional but also visually appealing and comfortable for users.
