The plastic extruder is a crucial piece of equipment in the plastics manufacturing industry, responsible for transforming raw plastic materials into a wide range of products, from simple pipes and tubes to complex profiles and sheets. With its ability to melt and shape plastic into various forms, the extruder plays a vital role in meeting the demands of diverse industries, including construction, automotive, packaging, and consumer goods. In this article, we will delve into the world of plastic extrusion, exploring the principles, processes, and applications of this versatile technology.
Introduction to Plastic Extrusion
Plastic extrusion is a continuous process that involves melting plastic pellets or powder and shaping the molten material into a desired form. The process begins with the feeding of raw materials into the extruder, where they are heated and melted by a combination of heat from the barrel and the mechanical energy generated by the screw. As the plastic is melted, it is conveyed through the barrel by the rotating screw, which also mixes and homogenizes the material. The molten plastic is then forced through a die, which shapes the material into the desired profile. The extruded product is then cooled, either by air or water, and cut to the required length.
Types of Plastic Extruders

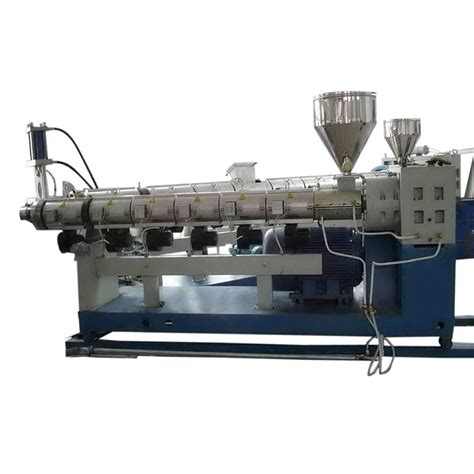

There are several types of plastic extruders, each designed to handle specific materials and applications. The most common types include single-screw extruders, twin-screw extruders, and co-extruders. Single-screw extruders are the most widely used type, suitable for processing a wide range of thermoplastic materials, including polyethylene, polypropylene, and polyvinyl chloride (PVC). Twin-screw extruders, on the other hand, are designed for processing more complex materials, such as thermoplastic elastomers and nanocomposites. Co-extruders are used for producing multi-layered products, such as co-extruded sheets and films.
| Extruder Type | Material Compatibility | Application |
|---|---|---|
| Single-screw extruder | Thermoplastics (e.g., PE, PP, PVC) | Pipes, tubes, profiles, sheets |
| Twin-screw extruder | Complex materials (e.g., TPE, nanocomposites) | Compounding, masterbatches, specialty products |
| Co-extruder | Multi-layered materials | Co-extruded sheets, films, laminates |

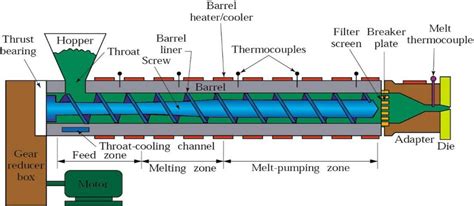

Key Components of a Plastic Extruder
A plastic extruder consists of several key components, each playing a critical role in the extrusion process. The screw, barrel, and die are the most critical components, as they are responsible for melting, conveying, and shaping the plastic material. The screw is designed to melt and mix the plastic, while the barrel provides the necessary heat and pressure to maintain the melting process. The die, on the other hand, determines the shape and size of the extruded product.
Screw Design and Optimization
The screw is a critical component of the extruder, responsible for melting and conveying the plastic material. Screw design and optimization are essential for achieving efficient melting, mixing, and conveying of the material. The screw design must take into account the material properties, including viscosity, melting point, and thermal conductivity. A well-designed screw can improve the efficiency of the extrusion process, reduce energy consumption, and enhance product quality.
Key Points
- The plastic extruder is a critical piece of equipment in the plastics manufacturing industry.
- Plastic extrusion is a continuous process that involves melting plastic pellets or powder and shaping the molten material into a desired form.
- There are several types of plastic extruders, each designed to handle specific materials and applications.
- The choice of extruder type depends on the specific requirements of the application, including material properties, product geometry, and production volume.
- Screw design and optimization are essential for achieving efficient melting, mixing, and conveying of the material.
Applications of Plastic Extrusion

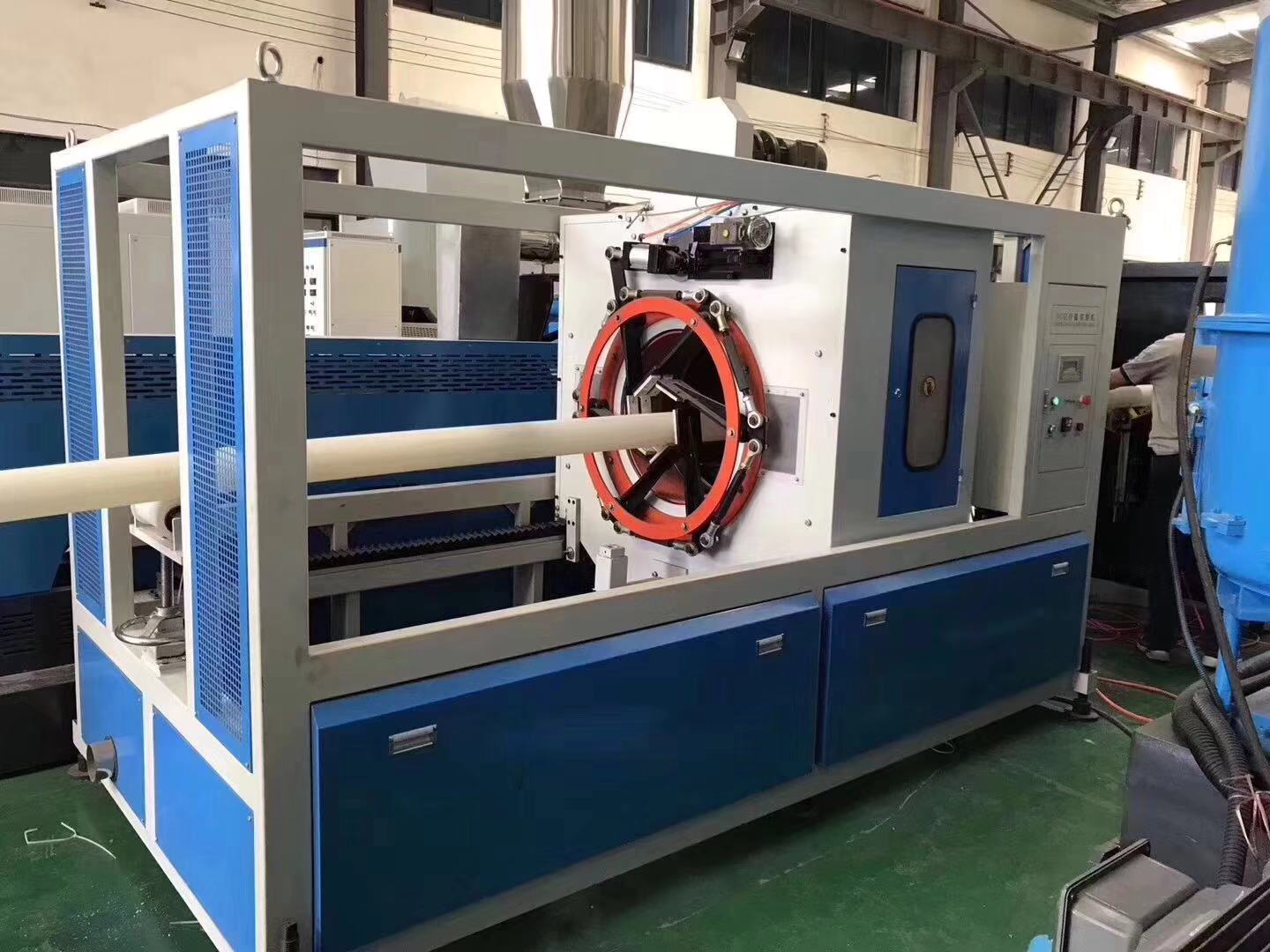

Plastic extrusion is a versatile technology with a wide range of applications across various industries. Some of the most common applications include pipes and tubing, profiles and sheets, films and packaging materials, and automotive components. The extrusion process can produce products with complex geometries, making it an ideal technology for producing parts with intricate designs.
Advantages and Limitations of Plastic Extrusion
Plastic extrusion offers several advantages, including high production rates, low costs, and versatility in terms of material selection and product geometry. However, the process also has some limitations, including the potential for material degradation, product defects, and environmental concerns. Understanding the advantages and limitations of plastic extrusion is crucial for optimizing the process and ensuring the production of high-quality products.
| Application | Product Examples | Industry |
|---|---|---|
| Pipes and tubing | Water pipes, gas pipes, medical tubing | Construction, healthcare, energy |
| Profiles and sheets | Window frames, door profiles, roofing sheets | Construction, automotive, packaging |
| Films and packaging materials | Food packaging, shrink films, labels | Food, beverages, consumer goods |
| Automotive components | Dashboards, bumpers, interior trim | Automotive |
What is the difference between single-screw and twin-screw extruders?
+Single-screw extruders are suitable for processing thermoplastic materials, while twin-screw extruders are designed for processing more complex materials, such as thermoplastic elastomers and nanocomposites.
What are the advantages of plastic extrusion?
+Plastic extrusion offers several advantages, including high production rates, low costs, and versatility in terms of material selection and product geometry.
What are the limitations of plastic extrusion?
+The process has some limitations, including the potential for material degradation, product defects, and environmental concerns.
