Ever plugged in an appliance only to find it dead, leaving you wondering if the outlet itself is the culprit? It’s a common frustration, and one I’ve faced more times than I’d like to admit. The good news is, you don’t need to be an electrician to diagnose the issue. Learning how to check an outlet with a multimeter is a straightforward skill that can save you time and money. In this guide, I’ll walk you through the process step by step, sharing practical tips and insights from my own experiences.
Why Use a Multimeter to Check an Outlet?
A multimeter is an essential tool for anyone who wants to troubleshoot electrical issues at home. It measures voltage, current, and resistance, making it perfect for diagnosing problems with outlets. When I first started using a multimeter, I was surprised at how quickly I could identify whether an outlet was functioning properly or if there was a deeper issue, like a wiring problem or a tripped breaker. It’s a skill that’s both empowering and practical.
Tools You’ll Need
Before you begin, make sure you have the following tools:
- A digital multimeter (DMM)
- A screwdriver (to remove outlet covers if needed)
- A voltage tester (optional, but useful for quick checks)
Step-by-Step Guide to Check an Outlet With a Multimeter
Here’s how to safely and effectively test an outlet using a multimeter:
1. Prepare Your Multimeter
Set your multimeter to measure AC voltage. Most household outlets in the U.S. operate at 120V, so ensure your multimeter is set to a range that includes this value. I’ve found that starting at 200V AC works well for most residential checks.
2. Turn Off Power (Optional but Recommended)
While it’s not always necessary to turn off the power, I prefer to do so for safety, especially if I’m working with older outlets. Flip the corresponding breaker in your electrical panel to ensure no live current is present.
3. Insert the Probes
Insert the black probe into the COM (common) port and the red probe into the VΩmA port on your multimeter. This setup is standard for measuring voltage.
4. Test the Outlet

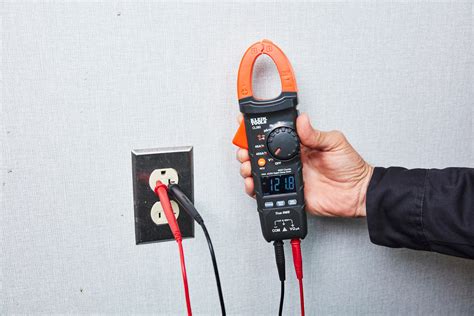

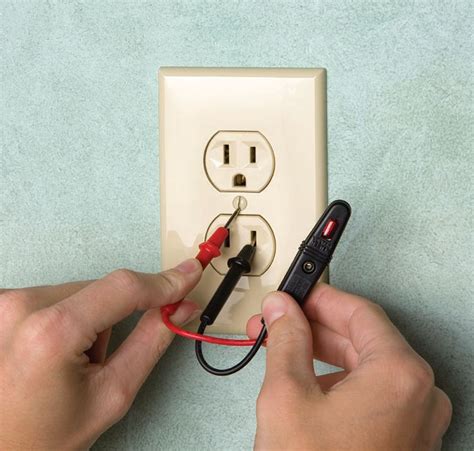

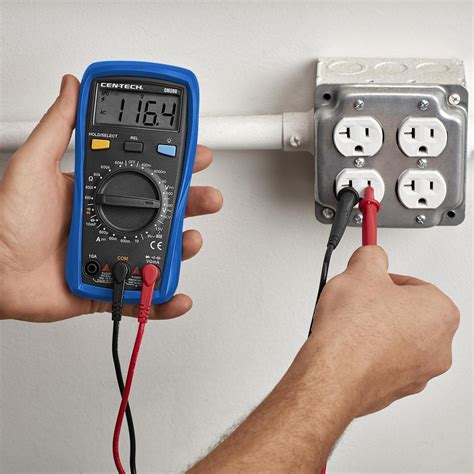

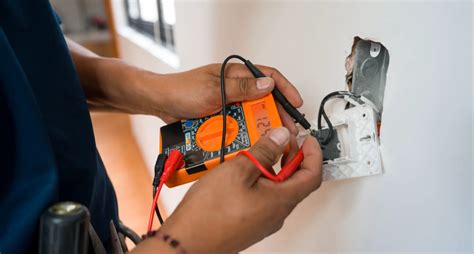

Insert the probes into the outlet slots: the red probe into the smaller, hotter slot (usually the narrower one) and the black probe into the neutral slot (wider one). If the outlet has a grounding slot, you can also test it by inserting the black probe there.
⚠️ Note: Always ensure the probes are fully inserted into the slots to get an accurate reading.
5. Read the Results

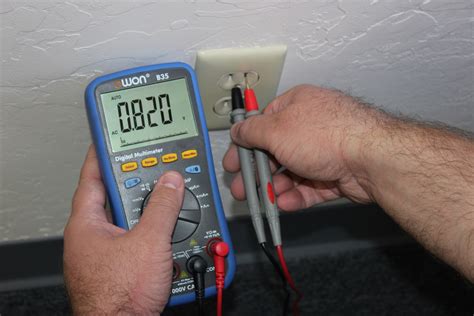

A properly functioning outlet should read around 120V. If the reading is significantly lower or higher, or if you get no reading at all, there’s likely an issue. In my experience, a reading of 0V often indicates a tripped breaker or a disconnected wire.
6. Test Grounding (Optional)
If your outlet has a grounding slot, test it by placing the black probe in the grounding slot and the red probe in the hot slot. A grounded outlet should show a reading close to 0V. If it doesn’t, the grounding may be faulty.
Common Issues and What They Mean
Here are some common readings and what they typically indicate:
| Reading | Possible Issue |
|---|---|
| 120V | Outlet is functioning properly. |
| 0V | Tripped breaker, disconnected wire, or dead outlet. |
| Low Voltage (e.g., 80V) | Poor connection or overloaded circuit. |
| No Ground Reading | Faulty or missing grounding. |
Safety Tips When Checking an Outlet
Working with electricity always carries risks, so here are some safety tips I’ve learned over the years:
- Always assume an outlet is live unless you’ve confirmed otherwise.
- Use insulated probes and wear rubber-soled shoes for added protection.
- Avoid touching the metal ends of the probes while testing.
⚠️ Note: If you’re unsure about any step, consult a professional electrician to avoid accidents.
Learning to check an outlet with a multimeter is a valuable skill that can help you diagnose electrical issues quickly and confidently. While it may seem intimidating at first, with a bit of practice, you’ll find it’s a straightforward process. Remember, safety always comes first, so take your time and double-check your setup before proceeding. Armed with this knowledge, you’ll be better equipped to handle common electrical problems around your home.
