Carbon fiber cloth has emerged as a revolutionary material in various industries, including aerospace, automotive, and sports equipment manufacturing. The unique combination of high strength, low weight, and excellent durability has made it an attractive option for designers and engineers seeking to create innovative products. In this article, we will delve into the world of carbon fiber cloth, exploring its properties, applications, and manufacturing processes.
One of the key benefits of carbon fiber cloth is its exceptional strength-to-weight ratio. With a tensile strength of up to 4,000 MPa (580,000 psi) and a density of approximately 1.8 g/cm³, it outperforms many traditional materials, including steel and aluminum. This property makes it an ideal choice for applications where weight reduction is critical, such as in the aerospace and automotive industries. For instance, the use of carbon fiber cloth in aircraft structures can lead to significant fuel savings, while in cars, it can improve acceleration and handling.
Key Points
- Carbon fiber cloth offers exceptional strength-to-weight ratio, making it ideal for weight-sensitive applications.
- It is manufactured through a complex process involving carbonization, sizing, and weaving.
- Carbon fiber cloth is used in various industries, including aerospace, automotive, and sports equipment manufacturing.
- Its high cost and limited repairability are significant drawbacks, but ongoing research aims to address these challenges.
- Hybrid materials combining carbon fiber with other fibers, such as glass or Kevlar, offer improved toughness and reduced cost.
Manufacturing Process
The production of carbon fiber cloth involves several stages, starting with the creation of polyacrylonitrile (PAN) fibers. These fibers are then subjected to a process known as carbonization, where they are heated to high temperatures (up to 1,500°C) in the absence of oxygen, resulting in the formation of carbon fibers. The carbon fibers are then sized with a chemical coating to improve their adhesion to resins and other materials. Finally, the fibers are woven into a cloth using a variety of techniques, including plain weave, twill weave, or satin weave.
Types of Carbon Fiber Cloth

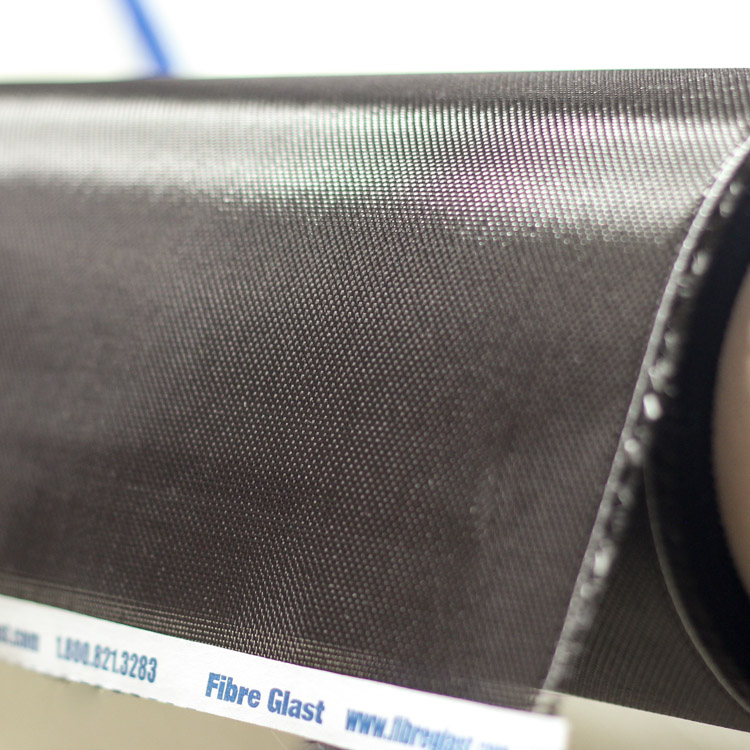

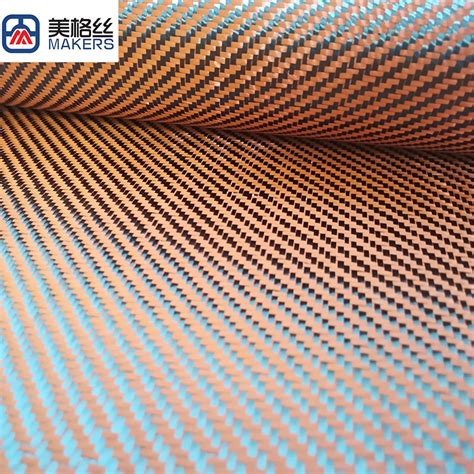

There are several types of carbon fiber cloth, each with its unique properties and applications. Unidirectional (UD) carbon fiber cloth, for example, consists of fibers aligned in a single direction, providing exceptional strength and stiffness in that direction. Woven carbon fiber cloth, on the other hand, offers improved toughness and resistance to delamination. Hybrid carbon fiber cloths, which combine carbon fibers with other fibers, such as glass or Kevlar, offer a balance of properties, including strength, toughness, and cost.
| Carbon Fiber Cloth Type | Tensile Strength (MPa) | Weight (g/cm³) |
|---|---|---|
| Unidirectional (UD) Carbon Fiber | 3,500-4,000 | 1.8-2.0 |
| Woven Carbon Fiber Cloth | 2,500-3,500 | 1.9-2.2 |
| Hybrid Carbon Fiber Cloth | 2,000-3,000 | 2.0-2.5 |
Applications of Carbon Fiber Cloth
Carbon fiber cloth is used in a wide range of applications, including aerospace, automotive, sports equipment manufacturing, and civil engineering. In the aerospace industry, it is used to manufacture aircraft structures, such as wings, fuselages, and control surfaces. In the automotive industry, it is used to produce car bodies, chassis, and engine components. In sports equipment manufacturing, it is used to create lightweight and durable products, such as bicycle frames, golf clubs, and tennis rackets.
Challenges and Limitations
Despite its many advantages, carbon fiber cloth also has some significant challenges and limitations. One of the major drawbacks is its high cost, which can make it prohibitively expensive for many applications. Additionally, carbon fiber cloth can be difficult to repair, which can limit its use in applications where damage is likely to occur. Ongoing research aims to address these challenges by developing new manufacturing processes, improving repair techniques, and reducing costs.
What is the difference between carbon fiber cloth and traditional fabrics?
+Carbon fiber cloth is a high-performance material that offers exceptional strength, stiffness, and durability, making it ideal for applications where weight reduction and improved performance are critical. Traditional fabrics, on the other hand, are often used for their aesthetic appeal, comfort, and durability, but may not offer the same level of performance as carbon fiber cloth.
How is carbon fiber cloth manufactured?
+Carbon fiber cloth is manufactured through a complex process involving carbonization, sizing, and weaving. The process starts with the creation of polyacrylonitrile (PAN) fibers, which are then subjected to high temperatures in the absence of oxygen, resulting in the formation of carbon fibers. The carbon fibers are then sized with a chemical coating and woven into a cloth using a variety of techniques.
What are the main applications of carbon fiber cloth?
+Carbon fiber cloth is used in a wide range of applications, including aerospace, automotive, sports equipment manufacturing, and civil engineering. Its unique combination of high strength, low weight, and excellent durability makes it an ideal material for applications where weight reduction and improved performance are critical.
In conclusion, carbon fiber cloth is a revolutionary material that offers exceptional strength, stiffness, and durability, making it an ideal choice for a wide range of applications. While it has some significant challenges and limitations, ongoing research aims to address these issues and improve its performance, cost, and sustainability. As the demand for lightweight and high-performance materials continues to grow, carbon fiber cloth is likely to play an increasingly important role in shaping the future of various industries.
